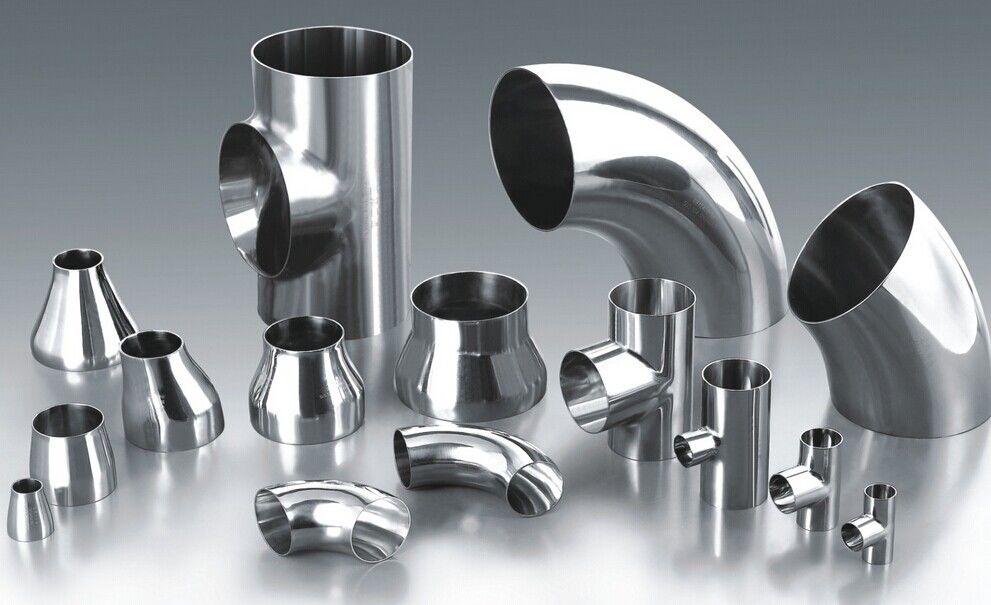

Buttweld Fittings
Buttweld fittings achieve a lot of admiration of deference by our customers attributable to its high strength, dimensional correctness, high tension power, corrosion resistant and consistency. These items are utilized in different business, mechanical and car enterprises. We produce these fittings utilizing high grade of raw material by implementing most ultra modern technology. These items are customers can profit from us at different sizes, shapes and design as per the requirements. As an one of the prominent industry Dhairya Alloys offers variations of Duplex S31803 Buttweld Pipe Fittings, Super Duplex Stainless Steel Buttweld Fittings, Stainless Steel 321 Pipe Fittings, Stainless Steel 316L Buttweld Fittings, Stainless Steel 304L Buttweld Fittings Manufacturers in India
Buttweld Fittings Specification
| Pipe Fittings Specifications | ASTM A403/ ASME SA403 |
|---|---|
| Pipe Fittings size | Seamless Butt Weld Fittings : 1/2" - 10" Welded Butt Weld Fittings : 1/2" - 48" |
| Pipe Fittings Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Buttweld Fittings Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Buttweld Pipe FittingsType | DN15-DN1200 |
| ASTM A403 SS Buttweld Fitting Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom ASTM A403 Grade WP Pipe Fitting |
| Size Range | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) ASTM A403 WP Buttweld Fitting |
| ASTM A403 SS Buttweld Fittings Manufacturing process | Push, Press, Forge, Cast, etc. |
| Buttweld Pipe Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| SA 403 Pipe Fittings Origin & Mills | Japanese, Indian, USA, Korean, European, Ukraine, Russian |
| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend |
| We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Manufacturing Standards of Stainless Steel Buttweld Fittings
| ASME B16.9 ASTM A403 Pipe Fittings | Factory-Made Wrought Buttwelding Fittings | Long Radius Elbows, Long Radius Reducing Elbows, Long Radius Returns, Short Radius Elbows, Short Radius 180-deg Rerurns, 3D elbows, Straight Tees, Straight Crosses, Reducing Outlet Tees, Reducing Outlet Crosses, Lap Joint Stub Ends, Caps, Reducers |
| ASME B16.28 | Short Radius Elbows, Short Radius 180-deg Returns | |
| MSS SP43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications | Long Radius Elbows, Straight and Reducing-on-the-Outlet Tees, Lap Joint Stub ends, caps, long radius 180 Degree returns, concentric reducers, eccentric reducers |
| Mss SP75 | Long Radius Elbows, 3R elbows, straight tees, reducing outlet tees, caps, reducers |
|
Stainless Steel
|
ASTM A182 & A240 - TP304, 304L, 304H, 316, 316L, 316H, 316Ti, 309, 310, 317L, 321, 347, 904L |
|---|---|
|
Titanum
|
ASTM B381 Gr 1, 2, 3, 5 (6AL - 4V), 7, 9, 11, 12, 23 (6AL -4V ELI) |
|
High Nickel Alloys
|
ASTM B564 / B335 / B649 / B462 / B151 - Hastelloy, Nickel, Monel, Inconel, Incoloy, Alloy 20 & Cupro Nickel |
|
Duplex
|
ASTM A182 / UNS S31803 & S32205 (2205) |
|
Super Duplex
|
ASTM A182 / UNS S32750 (2507) & S32760. |
Stainless Steel Buttweld
Range : 15 NB UP TO 1200 NB IN SCH 5S , 10S ,10, 20 , 40S , 40 , STD , 60 , 80S , 80 , XS , 100 , 120 , 140 , 160 & XXS.
Types : Long/short radius elbows, equal/unequal tees, concentric/eccentric reducers, caps, cross, short/long neck stub-ends
Available Grade: 303, 304, 304L, 316, 316L, 316Ti, 310, 310S, 321, 317L, 347, 347H, 904L, 17 4PH, 15 5PH, 410, 420,
Nickel Alloy Buttweld
Range :15 NB UP TO 1200 NB IN SCH 5S , 10S ,10, 20 , 40S , 40 , STD , 60 , 80S , 80 , XS , 100 , 120 , 140 , 160 & XXS.
Types : Long/short radius elbows, equal/unequal tees, concentric/eccentric reducers, caps, cross, short/long neck stub-ends
Available Grade: INCONEL 600, 601, 625, 718, 800, 800H, 800HT,825, 925. SMO 254, ALLOY 20(20CB3), MONEL 400, 500K, RA 330, HASTELLOY C-276, HASTELLOY B2, B3, TITANIUM Gr 1 to 12
Duplex/ Super Duplex Buttweld
Range :15 NB UP TO 1200 NB IN SCH 5S , 10S ,10, 20 , 40S , 40 , STD , 60 , 80S , 80 , XS , 100 , 120 , 140 , 160 & XXS.
Types : Long/short radius elbows, equal/unequal tees, concentric/eccentric reducers, caps, cross, short/long neck stub-ends
Available Grade: UNS S31803 (F51), UNS S2205 (F60), UNS S32750 (F53), UNS S32760 (F55)
Copper Nickel Buttweld
Range :15 NB UP TO 1200 NB IN SCH 5S , 10S ,10, 20 , 40S , 40 , STD , 60 , 80S , 80 , XS , 100 , 120 , 140 , 160 & XXS.
Types : Long/short radius elbows, equal/unequal tees, concentric/eccentric reducers, caps, cross, short/long neck stub-ends
Available Grade: Copper Nickel 90/10 and Copper Nickel 70/30

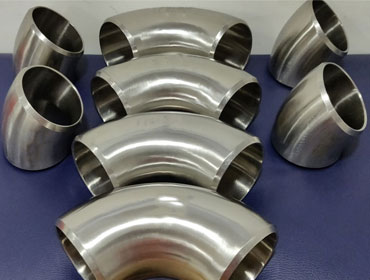

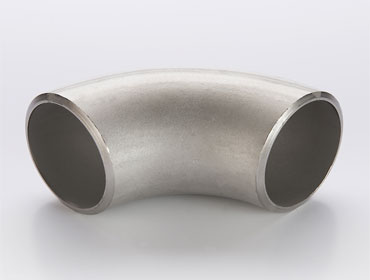

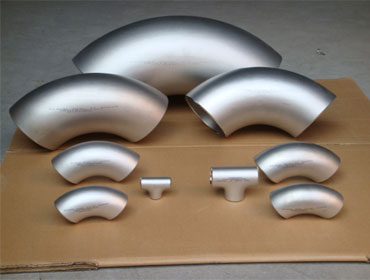

ELBOW
Form
Elbows in long & short radius in 45 deg, 90 deg, 180 deg
Grades offered
Stainless Steel
ASTM, A403, WP304 / 304L / 304H / 316 / 316L / 317 / 317L / 321 / 310 / 347
/
904L
Carbon Steel
ASTM, A234, WPB / A420, WPL3 / A420, WPL6 / MSS-SP-75, WPHY 42 / 46 / 52 /
56 / 60 /
65 / 70
Alloy Steel
ASTM A234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91 ASTM A234 WP1 / WP5 / WP9 /
WP11 /
WP22 / WP91
Size
1/8″ NB to 48″ NB (Seamless & Welded)
Wall thickness
Sch. 5S to Sch. XXS.
REDUCING TEE
Form
Elbows in long & short radius in 45 deg, 90 deg, 180 deg
Grades offered
Stainless Steel
ASTM A 182, A 240
Carbon Steel
ASTM, A234, WPB / A420, WPL3 / A420, WPL6 / MSS-SP-75, WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70
Alloy Steel
ASTM A234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91 ASTM A234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91
Size
1/8″ NB to 48″ NB (Seamless & Welded)
Wall thickness
Sch. 5S to Sch. XXS.

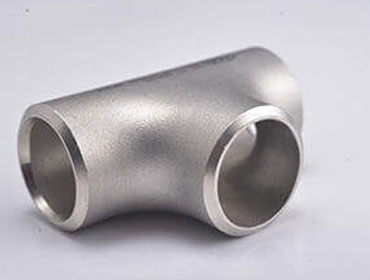

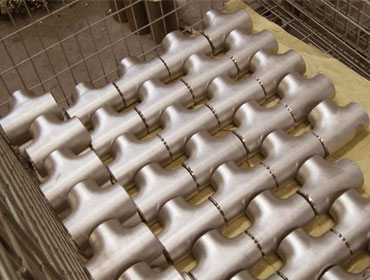

EQUAL TEE
Equal Tee is a T-shaped device which has three openings that act as an outlet for the pipe. All the three ends of the equal tee are of the same size. We can offer equal in different metals such as monel, nickle, inconel, hastalloy, copper, brass and titanium material. Custom made equal can be developed to befit the specific application requirement of the clients..

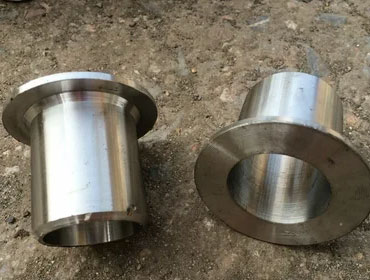

LONG & SHORT STUB END
Size1/8″NB to 48″NB IN
Schedule
SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type
Seamless / ERW / welded / fabricated
Form
Long stub end & short stub end

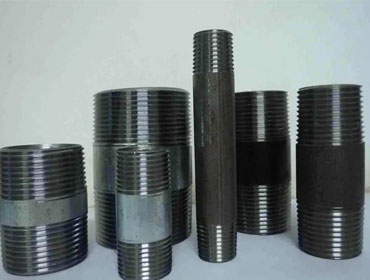

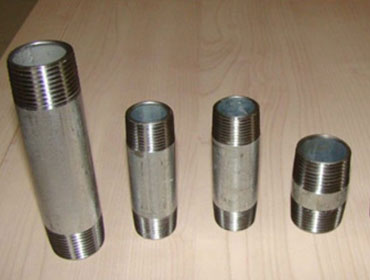

SWAGE NIPPLE & BARREL NIPPLE
We offer Swage Nipple and Barrel Nipple, specially designed to withstand high temperature and pressure. These can be used for permanent welded connection or detachable thread connection. Our range is available in varied specifications to suit the application based requirements of the clients.
Features
Durable
Corrosion resistance
High tensile strength
Temperature resistance
Superior finish

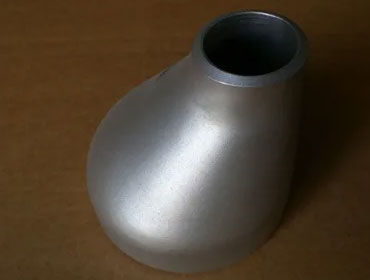

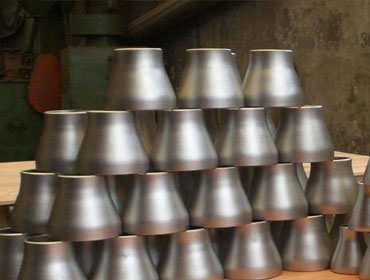

CONCENTRIC & ECCENTRIC REDUCERS
We are offering our clients with concentric / eccentric reducers that are used in petrochemical, power, nuclear and electronic industries. Known for their close tolerances, these stainless steel concentric and eccentric reducers are designed with precise configurations. These reducers are ideal for critical applications that involve high pressure, impulse, vibration and temperature.

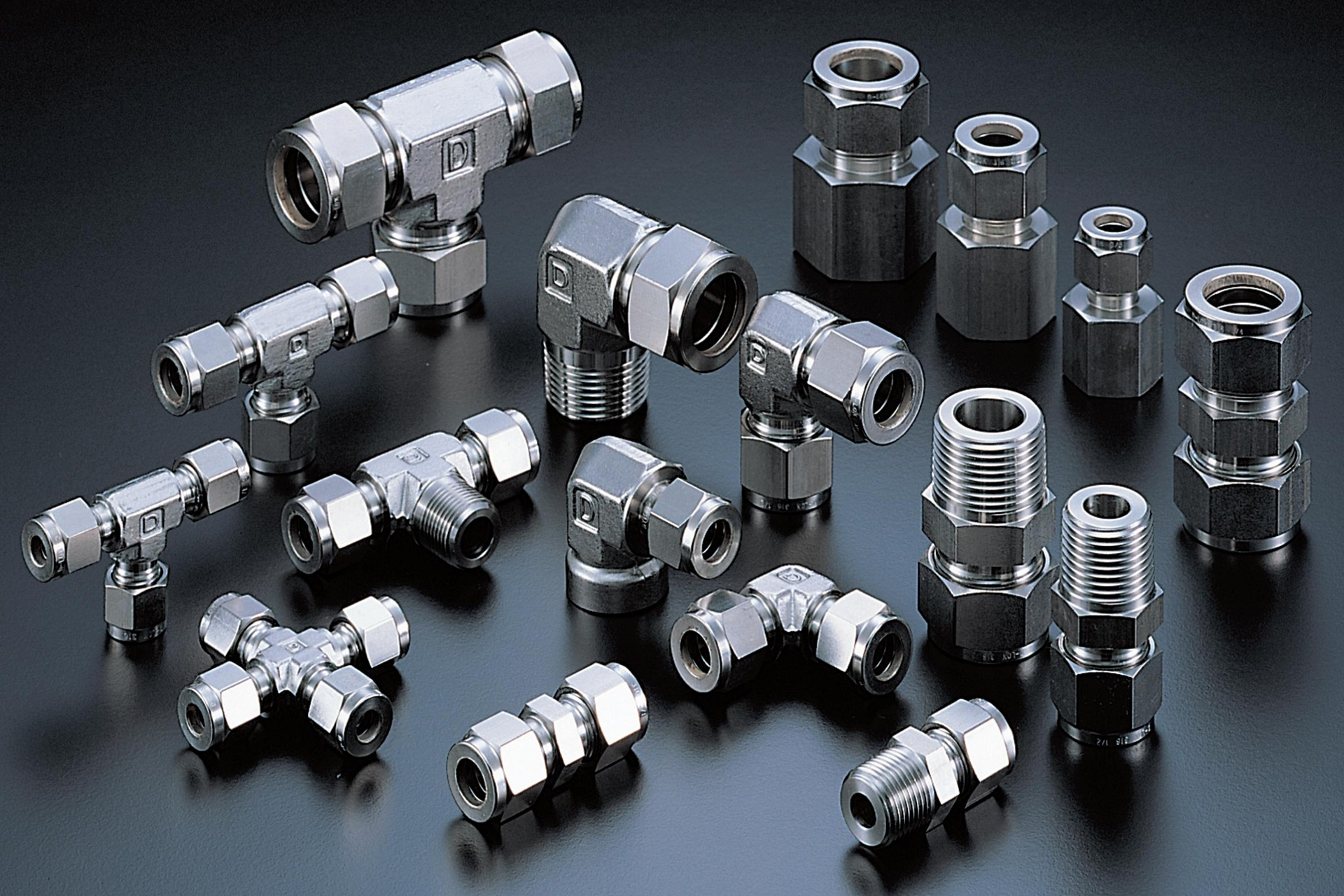

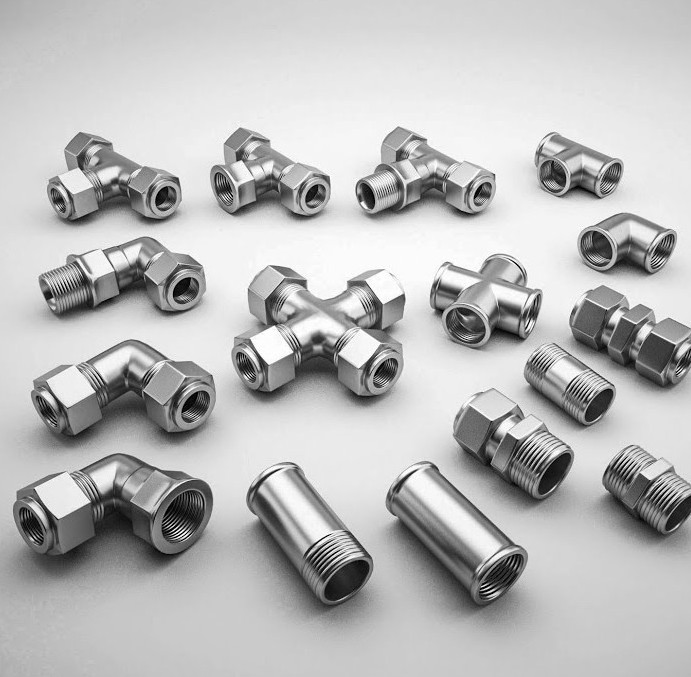

Forged Fittings
Forged Fitting is high tensile strength, strong, stable, corrosion and rust resistance as well as their high efficiency. We manufacture these forged fittings using premium quality materials in accordance with the quality standards. These products are available in various sizes, shapes and design as per the specific requirements of our clients. Our esteemed clients can avail from us these products at most reasonable prices.
Forged Fittings Specification
| Forged Fittings Specifications | ASTM A182/ ASME SA182 |
|---|---|
| Forged Fittings size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Forged Fittings Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Forged Fittings Types | Socketweld Fittings, Screwed-Threaded Fittings |
| ASTM A182 Forged Fittings Pressure Rating | Threaded End-2000lb/ 3000lb/ 6000lbs Socket-weld End-3000/ 6000/ 9000lbs |
| Forged Fittings Thread | NPT, BSPT, BSPP |
| Forged Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Forged Fittings Origin & Mills | Japanese, Indian, USA, Korean, European, Ukraine, Russian |
| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Reducers, Inserts, Caps, Nipples, and Unions, Forged Pipe Fittings, Socket Weld & Threaded, Equal Tees & Reducing Tees, 90° & 45° Elbows, Plugs |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Manufacturing Standards of Forged Fittings
| ASTM A182 / A182M | Forged Fittings and valves and parts for high temperature
service. Standard Specification for Wrought Austenitic Stainless Steel Forged Fittings |
| BS21 | Threading. |
| BS3799 | Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry |
| ANSI B16.11 | Forged steel fittings socket-welding and threaded. Socket Welding and Threaded Forged Fittings |
| ANSI/ASME B1.20.1 | Pipe threads, general purpose (inch). |
| ISO 4144 | Stainless steel fittings threaded to ISO 7-1. |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
Socketweld / Threaded 100% Radiography Tested
| Products | Size | |
|---|---|---|
| ASTM A182 SS 90° Elbow | ASTM A182 SS 45° Elbow | Sizes 1/8″– 4″ Pressure Ratings – 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| ASTM A182 SS Forged Tee | ASTM A182 SS Union | |
| ASTM A182 SS Forged Cross | ASTM A182 SS Insert | |
| ASTM A182 SS Screwed Bushing | ASTM A182 SS Threaded Pipe Nipple | |
| ASTM A182 SS Forged Socket weld Cap | ASTM A182 SS Screwed Coupling | |
| ASTM A182 SS Forged Plug | ASTM A182 SS Street Elbow | |
|
Stainless Steel
|
ASTM A-182 3000 lbs / 6000 lbs / 9000 lbs ASTM A-182 TP304, 304L, 304H, 316, 316L, 316H, 316Ti, 309, 310, 317L, 321, 347, 904L |
|---|---|
|
Titanum
|
ASTM / ASME SB564 Hastelloy, Nickel, Monel, Inconel, Incoloy, Alloy-20 & Cupro Nickel |
|
High Nickel Alloys
|
ASTM B564 / B335 / B649 / B462 / B151 - Hastelloy, Nickel, Monel, Inconel, Incoloy, Alloy 20 & Cupro Nickel |
Stainless Steel Forged
Range : 15 NB UP TO 100 NB IN 2000 LBS , 3000 LBS , 6000 LBS & 9000 LBS , 150 LBS , 250 LBS.
Form : Socket Weld Fittings : Elbow 90 Deg , Cross , Tee , Elbow 45 Deg , Coupling , Half Coupling & End Cap.
Available Grade: 303, 304, 304L, 316, 316L, 316Ti, 310, 310S, 321, 317L, 347, 347H, 904L, 17 4PH, 15 5PH, 410, 420

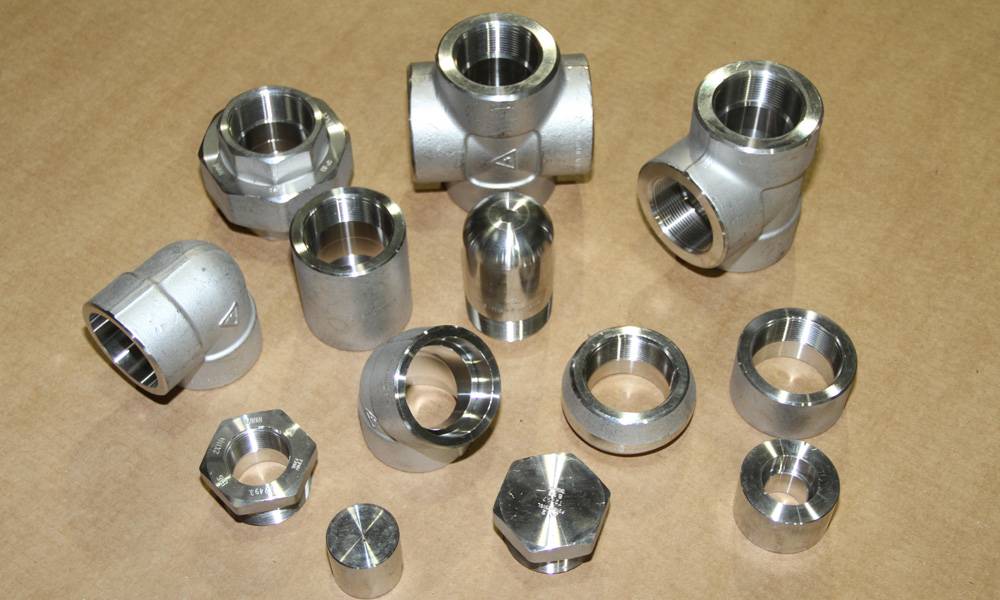

Nickel Alloy Forged
Range : 15 NB UP TO 100 NB IN 2000 LBS , 3000 LBS , 6000 LBS & 9000 LBS , 150 LBS , 250 LBS.
Form : Socket Weld Fittings : Elbow 90 Deg , Cross , Tee , Elbow 45 Deg , Coupling , Half Coupling & End Cap.
Available Grade: INCONEL 600, 601, 625, 718, 800, 800H, 800HT,825, 925. SMO 254, ALLOY 20(20CB3), MONEL 400, 500K, RA 330, HASTELLOY C-276, HASTELLOY B2, B3, TITANIUM Gr 1 to 7

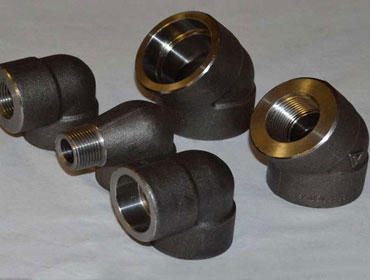

Duplex/ Super Duplex Forged
Range : 15 NB UP TO 100 NB IN 2000 LBS , 3000 LBS , 6000 LBS & 9000 LBS , 150 LBS , 250 LBS.
Form : Socket Weld Fittings : Elbow 90 Deg , Cross , Tee , Elbow 45 Deg , Coupling , Half Coupling & End Cap.
Available Grade: UNS S31803 (F51), UNS S2205 (F60), UNS S32750 (F53), UNS S32760 (F55)

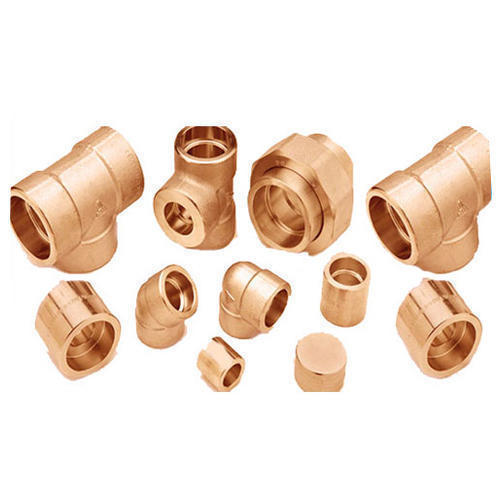

Copper Nickel Forged
Range : 15 NB UP TO 100 NB IN 2000 LBS , 3000 LBS , 6000 LBS & 9000 LBS , 150 LBS , 250 LBS.
Form : Socket Weld Fittings : Elbow 90 Deg , Cross , Tee , Elbow 45 Deg , Coupling , Half Coupling & End Cap.
Available Grade: Copper Nickel 90/10 and Copper Nickel 70/30
